Digital position indicators and dial DA09S
Hollow shaft max with Ø 20 mm
Counter with 5 digits and fine reading
Four different viewing angles
Specification:
Digital position indicators and dial DA09S
Hollow shaft max with Ø 20 mm
Counter with 5 digits and fine reading
Four different viewing angles
Detent as an option
Hollow shaft(inside diameter): Φ20mm and material: Stainless steel
Color: O=orange, B=black
Magnifying function for good readability
Stainless-steel driving shaft as an option
Axial seal, dustproof and splash-proof
Digital indicators are used to adjust and directly read a motion (or an angle)
obtained by a drive shaft rotation by the means of a screw.
Example for order:
SK1912-4.0(0004.0)E-SS20-OP
SK19B - C D E - F - G H
A | Type | SK19 |
B | Mounting position | 12,14,16,17 |
C | Axial pitch | 1.0,1.5,1.6,2.0,2.5,3.0,3.6,4.0,5.0,6.0,8.0,10.0 |
D | Display after one revolution | 0000.0 000.00 00000 |
E | Counting direction | I=Clockwise increasing E=Anticlockwise increasing |
F | Hollow shaft | Hollow shaft bore:Φ20mm Reducing sleeve will be adopted when less than 20mm If need stainless steel hollow shaft add “SS” |
G | Color | O=Orange, B=Black, G=Grey |
H | Pedestal | P=with pedestal, N=without pedestal |

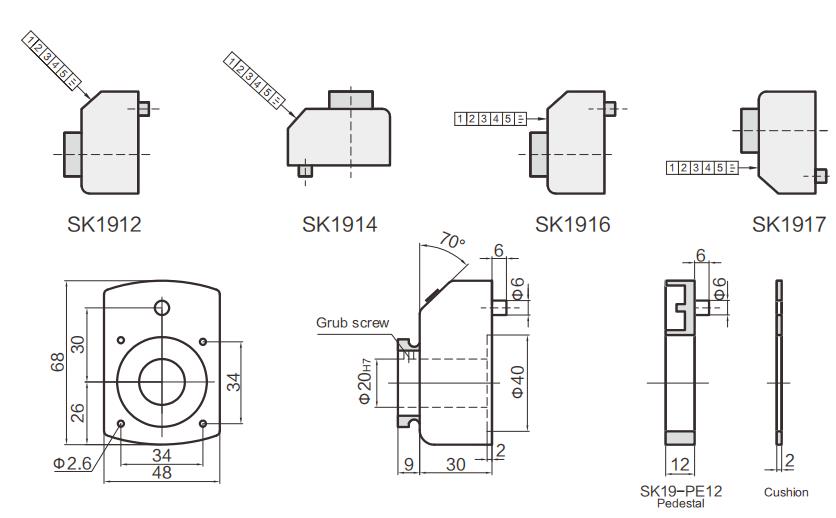

Mounting position
Reducing sleeve
Counting direction

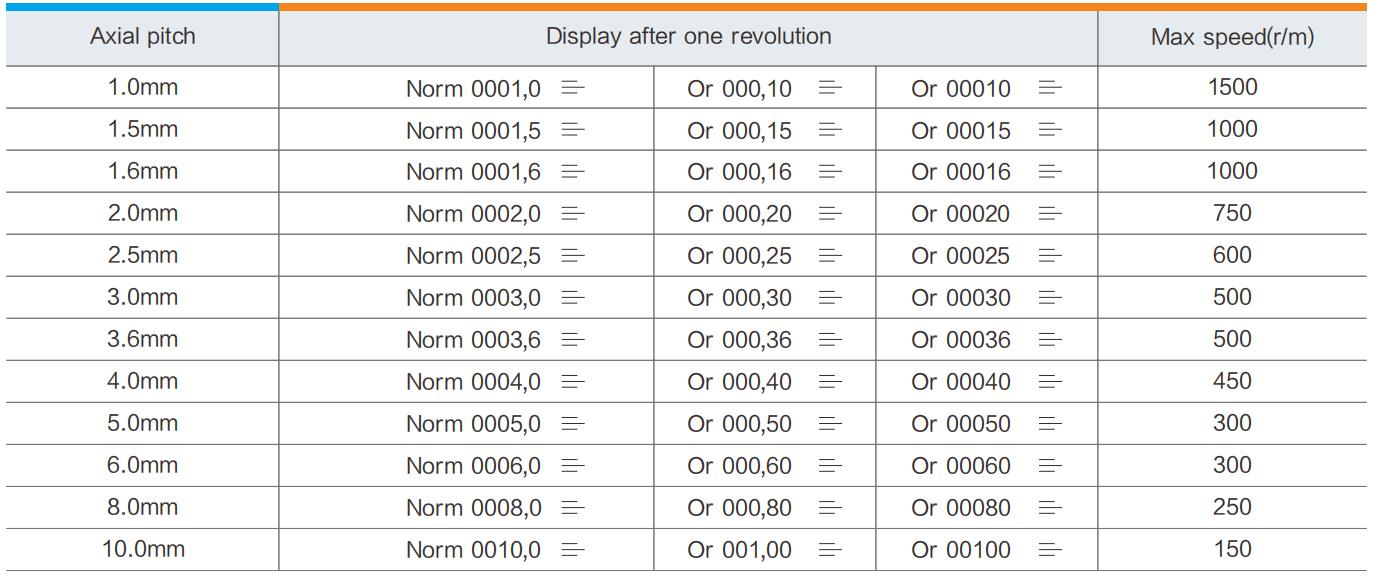

Axial pitch
