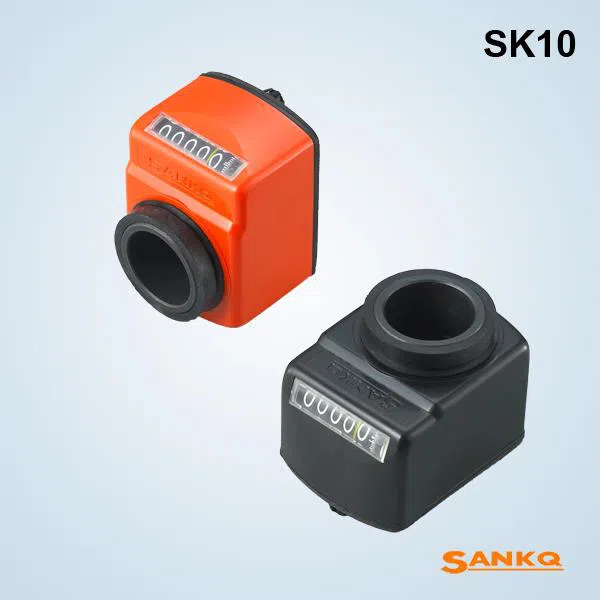

Hollow shaft max with Ø 30 mm
Counter with 5 digits and fine reading
Detent as an option
Magnifying function for good readability
Example for order: Specification:
Hollow shaft max with Ø 30 mm
Counter with 5 digits and fine reading
Detent as an option
Magnifying function for good readability
Stainless-steel driving shaft as an option
Axial seal, dustproof and splash-proof
It is possible to reverse the counting direction ratios from pitch 1.0mm to pitch 8.0mm
On request:
Special ratios and measures in Inch
SK1012-2.0(0002.0)I-30-BCY
SK10 B - C D E - F - G H l
A | Type | SK10 |
B | Mounting position | 12,14,16,17 |
C | Axial pitch | 1.0,2.0,2.5,3.0,4.0,5.0,6.0,8.0 |
D | Display after one revolution | 0000.0 000.00 00000 |
E | Counting direction | I=Clockwise increasing E=Anticlockwise increasing |
F | Hollow shaft | Hollow shaft bore:Φ30mm Reducing sleeve will be adopted when less than 30mm |
G | Color | O=Orange, B=Black, G=Grey |
H | The structure of torque pin | C or D |
I | The position of torque pin | Y or Z |

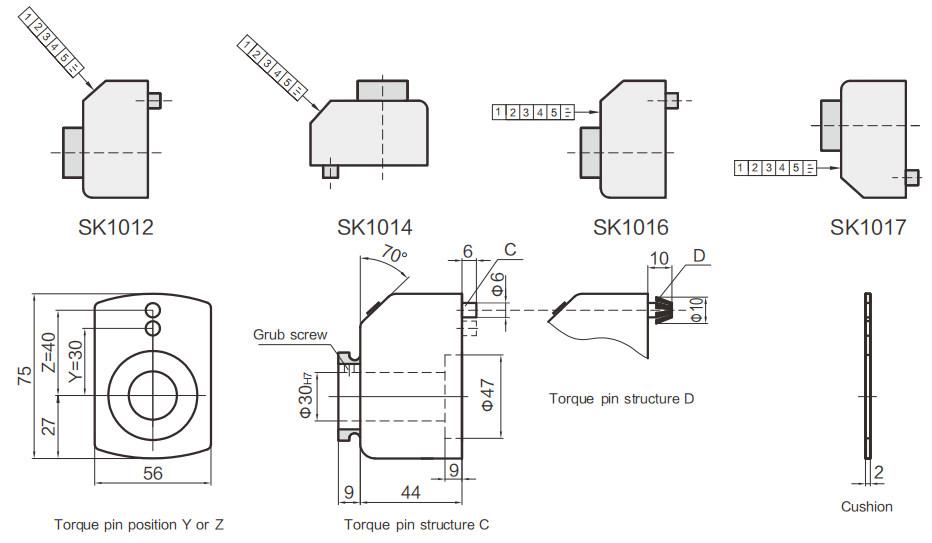

Mounting position
Reducing sleeve
Counting direction

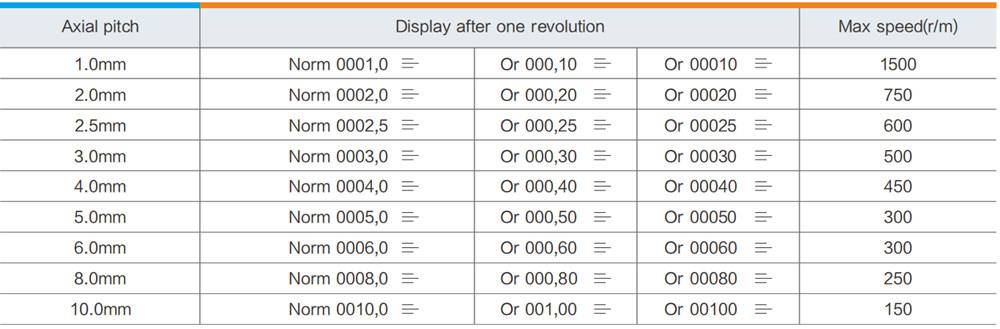

Axial pitch
