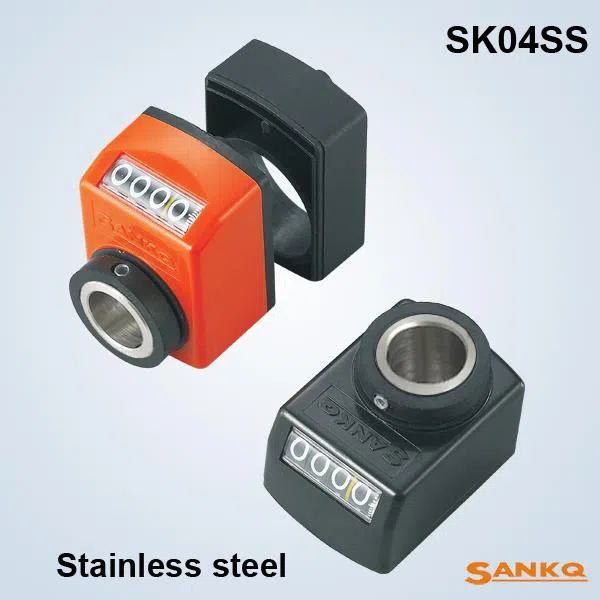

The SK04 series position indicator shaft hole has φ14MM,φ12MM,φ10MM,φ8MM,φ6MM Four different viewing angles Axial pitch range: From 1.0mm to 10.0mm Counting direction: I=clockwise and E=anticlockwise Hollow shaft (inside diameter): Φ14mm and material: Stainless steel
Specification:
Four different viewing angles
Axial pitch range: From 1.0mm to 10.0mm
Counting direction: I=clockwise and E=anticlockwise
Hollow shaft (inside diameter): Φ14mm and material: Stainless steel
Color: O=orange, B=black,G=Grey
Magnifying function for good readability
Stainless-steel driving shaft
Axial seal, dustproof and splash-proof
Applications in "Photogallery": Pharma & Chemical industry; regulation systems; metal-working and welding machines; paper-working machines; trimming and beading machines.
Example for order:
SK0412-1.5(001.5)I-SS14-OP
SK04B - C D E - F - G H
A | Type | SK04 |
B | Mounting position | 12, 14, 16, 17 |

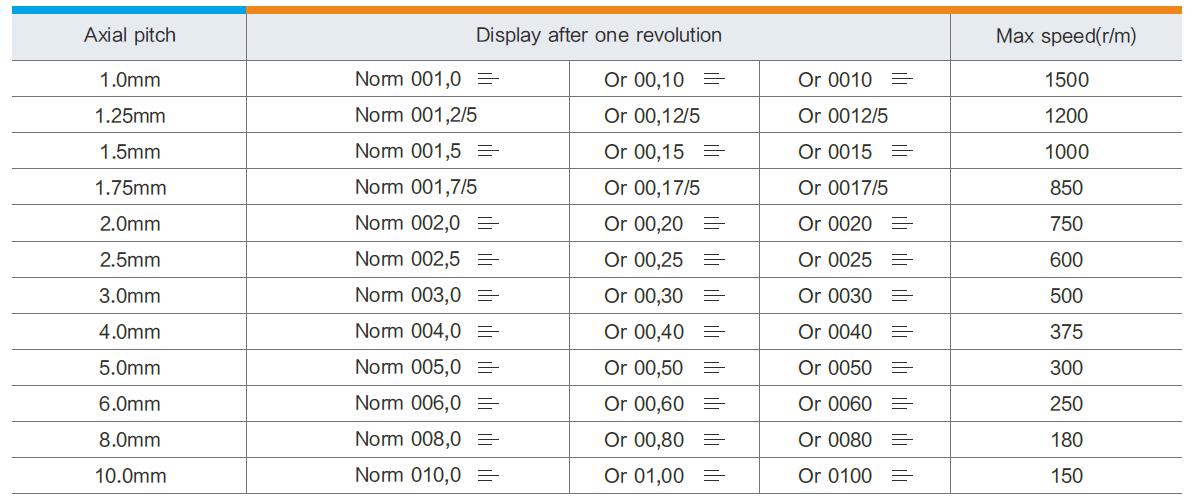

C | Axial pitch | 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 |
D | Display after one revolution | 000.0 00.00 0000 |
E | Counting direction | I=Clockwise increasing E=Anticlockwise increasing |
F | Hollow shaft | Hollow shaft bore: Φ14mm Reducing sleeve will be adopted when less than 14mm If need stainless steel hollow shaft add “SS” |
G | Color | O=Orange, B=Black, G=Grey |
H | Pedestal | P=with pedestal, N=without pedestal |

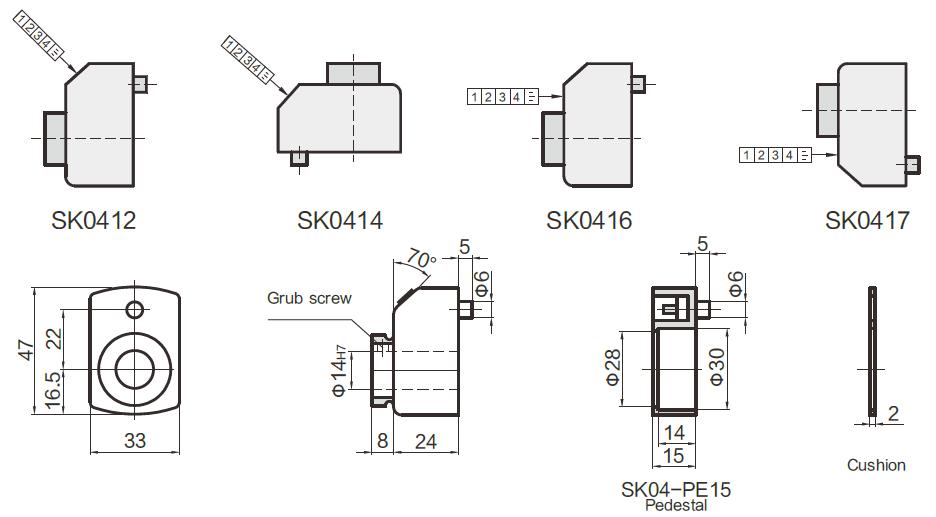

Mounting position
Reducing sleeve
Counting direction
Axial pitch
