Hollow shaft max with Ø 14 mm Counter with 4 digits and fine reading Detent as an option Magnifying function for good readability

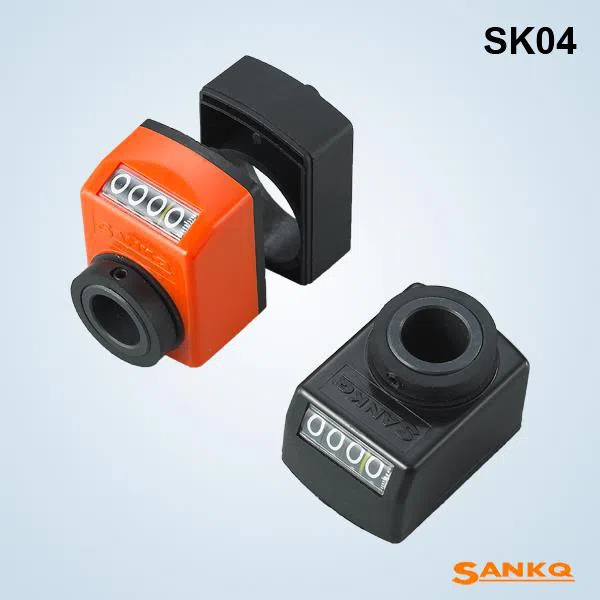

Position indicators also called counter. Models are SK04, SK09, SK10 series optional.
They are widely used in woodworking machinery, packaging machinery, labeling machinery, shears, color printing machines, filling machines, etc., and can be selected according to the screw pitch It has the characteristics of easy reading and accurate reading. High precision, no noise, long life, more convenient, practical and cost-saving than the dial handwheel.
Specification:
Hollow shaft max with Ø 14 mm
Counter with 4 digits and fine reading
Detent as an option
Magnifying function for good readability
Stainless-steel driving shaft as an option
Axial seal, dustproof and splash-proof
Applications in "Photogallery": Pharma & Chemical industry; regulation systems;
metal-working and welding machines; paper-working machines; trimming and beading machines.
Example for order:
SK0412-1.5(001.5)I-14-OP
SK04 B - C D E - F - G H
A | Type | SK04 |
B | Mounting position | 12,14,16,17 |
C | Axial pitch | 1.0,1.25,1.5,1.75,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0 |
D | Display after one revolution | 000.0 00.00 0000 |
E | Counting direction | I=Clockwise increasing E=Anticlockwise increasing |
F | Hollow shaft | Hollow shaft bore:Φ14mm Reducing sleeve will be adopted when less than 14mm If need stainless steel hollow shaft add “SS” |
G | Color | O=Orange, B=Black, G=Grey |
H | Pedestal | P=with pedestal, N=without pedestal |

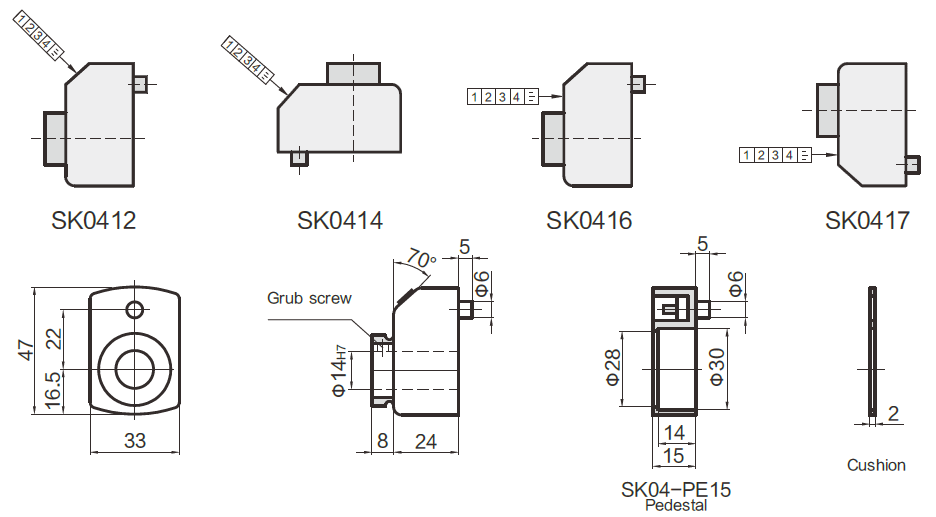

Mounting position
Reducing sleeve
Counting direction

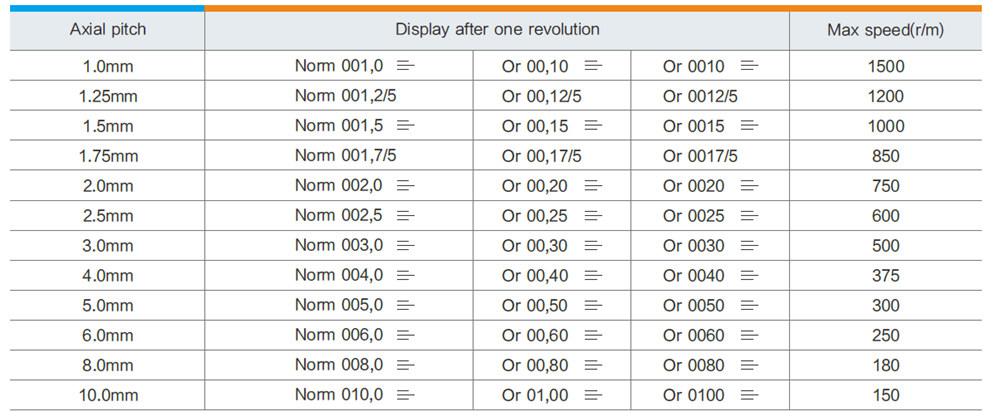

Axial pitch
