Hollow shaft max with Ø 20 mm
Counter with 5 digits and fine reading
Detent as an option
Magnifying function for good readability
Specification:
Hollow shaft max with Ø 20 mm
Counter with 5 digits and fine reading
Detent as an option
Magnifying function for good readability
Stainless-steel driving shaft as an option
Axial seal, dustproof and splash-proof
Example for order:
SK0912-4.0(0004.0)E-20-OC
SK09B - C D E - F - G H
A | Type | SK09 |
B | Mounting position | 12, 14, 16, 17 |
C | Axial pitch | 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 |
D | Display after one revolution | 0000.0 000.00 00000 |
E | Counting direction | I=Clockwise increasing E=Anticlockwise increasing |
F | Hollow shaft | Hollow shaft bore:Φ20mm Reducing sleeve will be adopted when less than 20mm If need stainless steel hollow shaft add “SS” |
G | Color | O=Orange, B=Black, G=Grey |
H | Structure of torque pin | C=Picture show structure, D=Picture show structure |

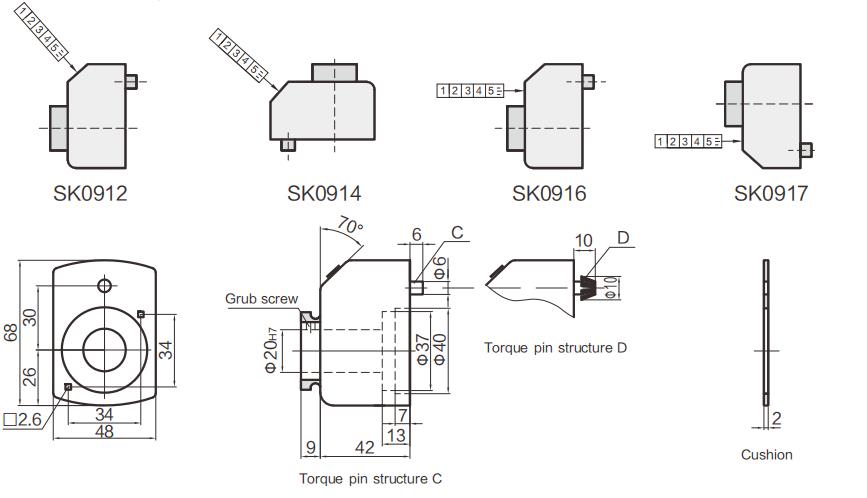

Mounting position
Reducing sleeve
Counting direction

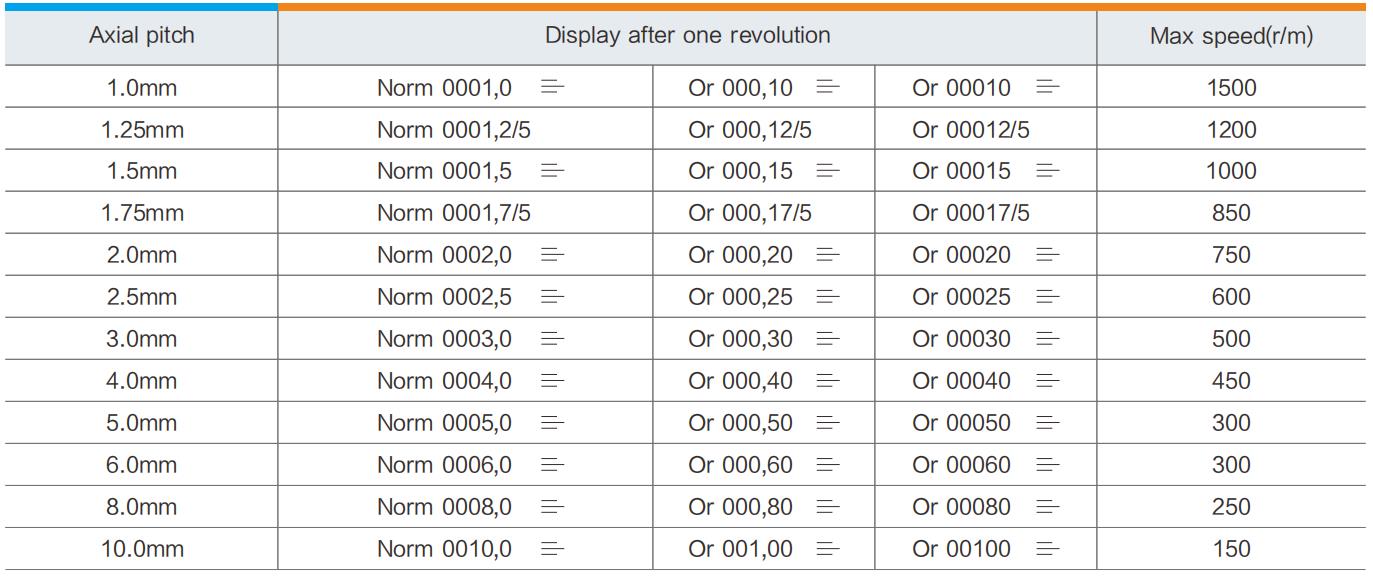

Axial pitch
