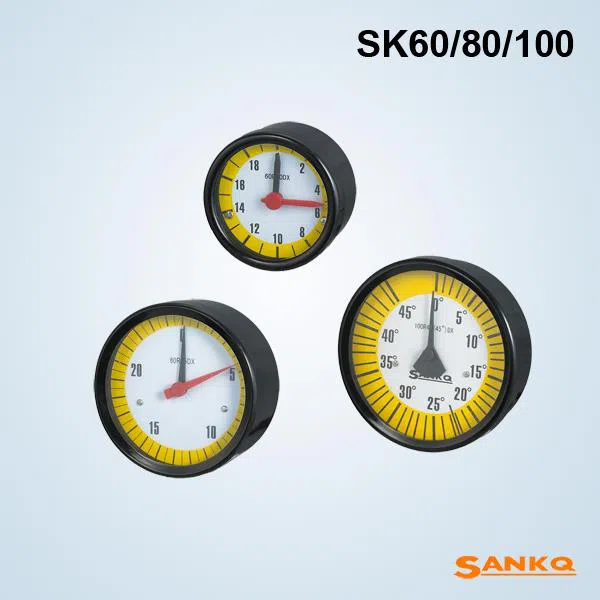

Position gauge used with handwheel, which is used in counting or indication the movement of instrument.
Position gauge used with handwheel, which is used in counting or indication the movement of instrument.
When handwheel is fixed to horizontal spindle, the gauge indicates different positions of spindle.
Special designs of dial scale available on request.
Example for order:
SK60-R20(0-20)-DX
SK A -R B C

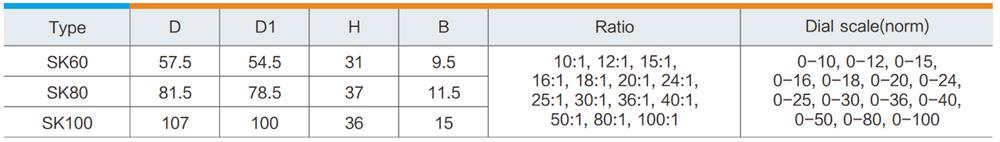

A | Type | 60,80,100 |
B | Dial scale | 0-10, 0-12, 0-15,0-16, 0-18, 0-20, 0-24,0-25, 0-30, 0-36, 0-40,0-50, 0-80, 0-100 |

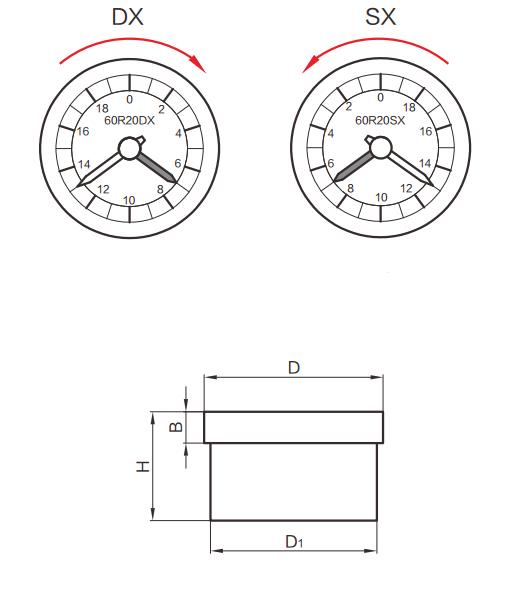

C | Direction of dial scale | DX=Clockwise increasing SX=Anticlockwise increasing |
